Conveyor Type Shot Peening
Machines

Precicut Conveyor Type Wheel Peening machines are suitable for
medium to high production demands. These machines are custom
designed for parts like leaf springs and large coil springs.


Read More
Conveyor Type Shot Peening
Machines

Precicut Conveyor Type Wheel Peening machines are suitable for
medium to high production demands. These machines are custom
designed for parts like leaf springs and large coil springs.


Read More

Conveyor Type Shot Peening
Machines

Precicut Conveyor Type Wheel Peening machines are suitable for
medium to high production demands. These machines are custom
designed for parts like leaf springs and large coil springs.


Read More

Conveyor Type Shot Peening
Machines

Precicut Conveyor Type Wheel Peening machines are suitable for
medium to high production demands. These machines are custom
designed for parts like leaf springs and large coil springs.


Read More
Previous Next

Conveyor Type Shot Peening Machines


We are Manufacturer, Supplier, Exporter, Services Provider of Conveyor Type Shot Peening Machines and our setup is situated at Aurangabad, Maharashtra, India.


Precicut Conveyor Type Wheel Peening machines are suitable for medium to high production demands. These machines are custom designed for parts like leaf springs and large coil springs.

Conveyor Type Shot Peening Machines
Working Principle

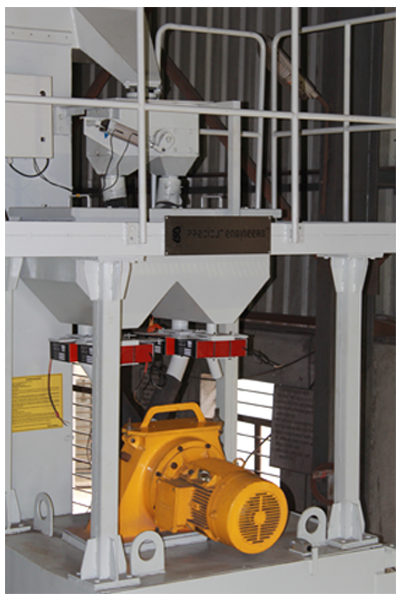

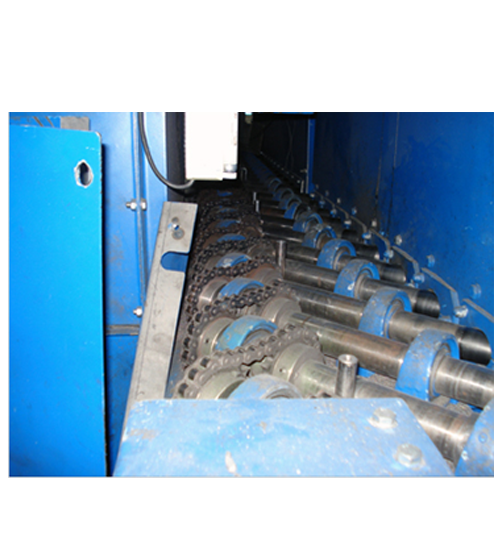

The machine consists of one or more turbine units, abrasive handling system, shot filtration system, vibro-sieve for shot size classification and a precise shot flow control valve. The machine is also equipped with a dedicated cartridge type dust collector for dust removal. The components travel on custom configured conveyors. In case of coil springs suitable spiral motion of the springs is generated through the adjustable/fixes inclination of the Diablo rollers. The conveyor line speed can be controlled by the VFD in order to achieve the desired results. The process parameters can be adjusted and monitored through the machine interface with advanced capabilities like report generation, SCADA, etc.




Request Quote


Features
  • MARSH - High Speed Turbines for high intensity shot peening.
  • MARSH - High Wear Life Carbide Alloy Parts
  • Euom Valve - Electromagnetic servo controlled valve for precise shot flow control.
  • Special sealing designs to ensure zero shot and dust leakages from the blast chamber.
  • Robust and low maintenance machine.
  • Easy accessibility to all maintenance areas.
  • Fool-proof and intelligent machine control system.
Conveyor Type Shot Peening Machines
Request Quote



Conveyor Type Shot Peening Machines
Optional Features
  • Mn. Steel Blast Chamber
  • Sound insulation enclosures
  • Automated/robotic part handling systems.
  • Spiral Separator to classify round shots from non-round ones
  • Multiple Media handling in a single machine.


Request Quote




MARSH - High Performance Blast Wheels
  • Blasting can be done at high speeds, up to 3,600RPM. This increases the productivity for the same blast wheel motor Hp and also allows for higher compressive stress generation
  • Approx 40% less current consumption compared to conventional designs.
  • 1/2" thk Mn. Steel Housing is for life.
  • Only 03 nos of blast wheel housing liners are required.
  • The blast wheel is easily accessible by removing the front circular liner.
  • The complete assembly / dismantling can be done by single person in fewer than 15 mins.
  • Cast parts are completely eliminated. Blades, control cage and impeller cage are manufactured from special carbide alloy. Blast wheel and housing liners are manufactured from forged tool steel blocks.
  • Extremely silent operation due to precision manufacturing and design innovation.

Single Table Type Wheel Peening Machine

Request Quote










Vibro-Screens


Vibro Screens

Vibro Screens are designed to perform effective size based separation in coarse as well as fine sizes. Vibro Screens use wire mesh or perforated or slotted sheets for carrying out separation of material on basis of size. They are designed on the principle of Gyratory Motion. Vibro screens allow remove the unacceptable sized shots/particles from the machine. The particles which are larger than the designated shot size can cause damage to the component and create dents. On the other hand, under-sized particles shall deteriorate the shot peening intensity and make the system incapable of generating the desired compressive stresses.


For Shot Peening Applications

Vibro screens are mandatory in shot peening applications as the shot size is very crucial factor for permanent stress generation. The correct size shots will only create the desired stress pattern in the component.


Request Quote











EUOM Valve

Euom Valve® is a cost effective and ultra modern shot flow control valve that uses an ingenious approach to achieve shot flow control. The valve operates on the theory of electro-magnetism.


  • No moving parts and no maintenance required.
  • The shot flow can be precisely set from the control unit.
  • The actual flow is displayed on the control unit screen.
  • No additional source like compressed air, etc required for its operation.
  • 24Vdc operated.
  • Shot Flow Sensor ensures that the set shot flow rate is actually achieved.
  • Can be used for any magnetic abrasive media.
  • The valve will give an error alarm and can trip the machine if the flow rate varies beyond the user specified limit.
euom-valves

Request Quote










Double-Door-Spinner-Hanger-Type-Shot-Blasting-Machine
Dust Collectors

High Efficiency Reverse Pulse Jet Type Dust Collector





Request Quote








Peening Envelope

Customized

Shot Velocity

Up to 90 mtrs/sec

Shot Flow Control

Euom Valve

Blast Wheel RPM

Up to 3600 RPM

No Of Blast Wheels

Customized

Line Speed 5 mtrs / min and above

Input / Output Height

1000 approx

Dust Collector

High Efficiency Pulse Jet Type with additional fine filter and silencer at the blower outlet

Sound Level

<85 dB at a distance of 1 meter from the machine

Peening Envelope

Customized

Shot Velocity

Up to 90 mtrs/sec

Shot Flow Control

Euom Valve

Blast Wheel RPM

Up to 3600 RPM

No Of Blast Wheels

Customized

Line Speed 5 mtrs / min and above

Input / Output Height

1000 approx

Dust Collector

High Efficiency Pulse Jet Type with additional fine filter and silencer at the blower outlet

Sound Level

<85 dB at a distance of 1 meter from the machine

Request Quote
