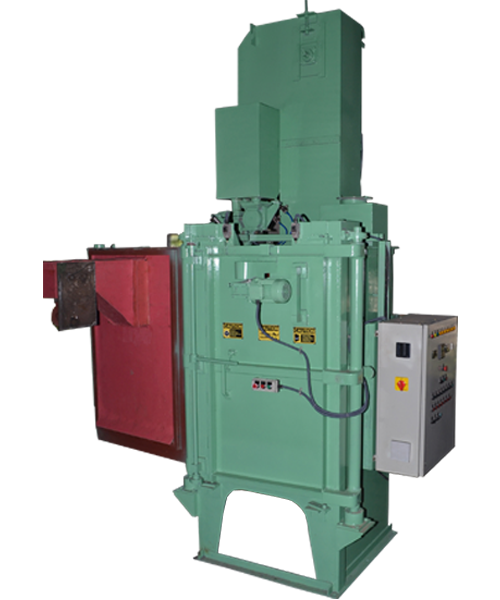

Double Door Spinner Hanger Type Shot Blasting Machines

We are Manufacturer, Supplier, Exporter, Services Provider of Double Door Spinner Hanger Type Shot Blasting Machines and our setup is situated at Aurangabad, Maharashtra, India.

Spinner Hanger machines are most versatile and suitable for a wide range of components and production demands. The various models offered can cater from 150 kgs / hanger to up to 1 MT/hanger of production rate. The machine is available as standard batch type with single or double door with one hanger each door.
The spinner hanger type machines are also available in a continuous type with overhead conveyor and turnstile design.

Suitable For

The machine consists of one or more turbine units, abrasive handling system, shot filtration system, vibro-sieve for shot size classification and a precise shot flow control valve. The machine is also equipped with a dedicated cartridge type dust collector for dust removal. The components travel on custom configured conveyors. In case of coil springs suitable spiral motion of the springs is generated through the adjustable/fixes inclination of the Diablo rollers. The conveyor line speed can be controlled by the VFD in order to achieve the desired results. The process parameters can be adjusted and monitored through the machine interface with advanced capabilities like report generation, SCADA, etc.

Features

Pit less designs
MARSH - High Wear Life Carbide Alloy Parts
MARSH - High Performance Blast Wheels.
No casted parts used in the machine
Complete Mn. Steel Construction
Robust Mn. Steel blast wheel housings.
Efficient abrasive recycling system.
Extreme low maintenance machine
High Efficiency Dust Collectors
All critical wear pats manufactured from special carbide alloy or tool steel
Fool-proof and intelligent machine control system.
Range of blast wheels offered.

Optional Features

Sound insulation enclosures
Magnetic shot separator for foundry applications
Automated fire fighting systems for dust collector
Range of performance, maintenance, safety and data acquisitions systems
Automated multiple media handling system.
Vibro-sieves for shot size filtration.

MARSH - High Performance Blast Wheels

Blasting can be done at high speeds, up to 3,600RPM. This increases the productivity for the same blast wheel motor Hp and also allows for higher compressive stress generation
Approx 40% less current consumption compared to conventional designs.
1/2"thk Mn. Steel Housing is for life.
Only 03 nos of blast wheel housing liners are required.
The blast wheel is easily accessible by removing the front circular liner.
The complete assembly / dismantling can be done by single person in fewer than 15 mins.
Can be used for any magnetic abrasive media.
Cast parts are completely eliminated. Blades, control cage and impeller cage are manufactured from special carbide alloy. Blast wheel and housing liners are manufactured from forged tool steel blocks.
Extremely silent operation due to precision manufacturing and design innovation.

EUOM Valve

Euom Valve® is a cost effective and ultra modern shot flow control valve that uses an ingenious approach to achieve shot flow control. The valve operates on the theory of electro-magnetism

No moving parts and no maintenance required.
The shot flow can be precisely set from the control unit.
The actual flow is displayed on the control unit screen.
No additional source like compressed air, etc required for its operation.
24Vdc operated.
Shot Flow Sensor ensures that the set shot flow rate is actually achieved.
Can be used for any magnetic abrasive media.
The valve will give an error alarm and can trip the machine if the flow rate varies beyond the user specified limit.

Dust Collectors

High Efficiency Reverse Pulse Jet Type Dust Collector

Double-Door-Spinner-Hanger-Type-Shot-Blasting-Machine

MODEL	MiNi	GLINT-350	GLINT-450	GLINT-800
Load Capacity [kgs]	Up to 150	Up to 350	Up to 450	1000 and above
Hanger Dimensions [mm]	Ø300 X 900	Ø600 X 1000	Ø1000 X 1200	Customized
No of Blast Wheels	2	2	2	3 up to 8
Blast Wheel Size [inches]	12	15	15 or 19.5	15 or 19.5
Blast Wheel Drive	Direct motor mounted or Indirect drive
Blast Wheel Design	Single plate or Double plate design
Shot Flow Control Valve	Electro-magnetic/Pneumatically operated
Turbine Motor [Hp]	5 / 7.5	7.5/10	10/15	10 and above
Electricals	• Main Supply: 440V, 50 Hz, 3phase. • Control Circuit and Instrumentation – 24Vdc.
Sound Level	<85 dB at a distance of 1 meter from the machine
Dust Collector	High Efficiency Reverse Pulse Jet Type Dust Collector
